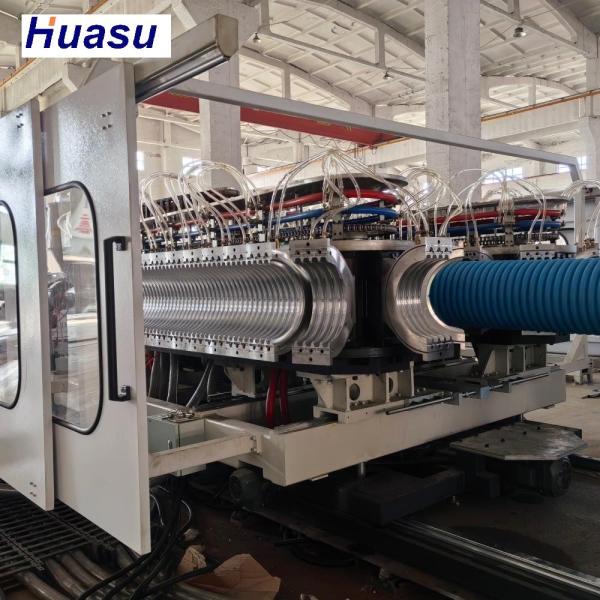

High Speed Double Wall Corrugated Pipe Extrusion Line with Planetary Cutting and 32-1600mm Diameter Range

Brand Name : HUASU

Model Number : SBG

Place Of Origin : China

Certification : ISO,CE

MOQ : 1 SET

Price : US$50,000-5,000,000

Packaging Details : Standard Package

Delivery Time : 30-90Day

Payment Terms : TT,L/C

Supply Ability : 100 Line

Die Head Material : High Quality Alloy Steel

Expansion Mode : Belling-on-line

Cutting Type : Planetary Cutting

Inner Diameter : 32mm-1600mm

Diameter : 32-1600mm

Warranty : 1 Year

Output : 100-2000 Kg/h

Corrugator : Double Wall Cottugated Pipe And Socket Online

Contact Now

High Speed Double Wall Corrugated Pipe Production Line
This advanced production line features water or air cooling systems combined with planetary cutting technology for efficient manufacturing of high-quality double wall corrugated pipes.
Product Overview
The Automatic Double Wall Corrugated Pipe Machine represents cutting-edge technology for producing superior quality double wall corrugated pipes with exceptional efficiency. Engineered for modern industrial requirements, this state-of-the-art equipment combines advanced technology with precision engineering to deliver optimal performance across various applications.
Key Features
  • Pressure water-cooling for mould blocks significantly increases production speed
  • Low energy consumption reduces overall production costs
  • Efficient vacuum system ensures perfect pipe formation
  • Mould block temperature control optimizes both appearance and internal quality
  • Quick changeover between different mould sizes with compatible tooling
  • Fully automated extrusion line operation
  • Synchronized control of corrugators and extruders
  • Hardened treated screws and barrels for extended lifespan
  • Remote service options available for maintenance support
Technical Specifications
Parameter Specification
Cooling Method Water or Air
Screw Configuration Single-screw
Pipe Diameter Range 32-1600mm
Corrugator Type Double Wall Corrugated Pipe and Socket Online
Inner Diameter 32mm-1600mm
Screw Ratio 36:1
Screw Type Single Screw
Output Capacity 100-2000 Kg/h
Gear Type Helical Gear
Barrel Hardness HV>940
Applications & Specifications
The HUASU SBG Double Wall Corrugated Pipe Extrusion Line is premium equipment designed for high-quality production of double wall corrugated pipes. Manufactured in China with ISO and CE certifications, this system ensures reliability and superior performance.
High Speed Double Wall Corrugated Pipe Extrusion Line with Planetary Cutting and 32-1600mm Diameter Range High Speed Double Wall Corrugated Pipe Extrusion Line with Planetary Cutting and 32-1600mm Diameter Range High Speed Double Wall Corrugated Pipe Extrusion Line with Planetary Cutting and 32-1600mm Diameter Range High Speed Double Wall Corrugated Pipe Extrusion Line with Planetary Cutting and 32-1600mm Diameter Range
Contact Information
Shandong HUASU Plastic Technology Co., Ltd.
Jiaozhou, Qingdao, Shandong, China
Contact: Ms. Lotus
Tel: +86 13806394279 (WhatsApp/WeChat)
Email: huasu2@qdhuasu.com
